Description
A Capable Women’s Trail Bike for Singletrack Adventures

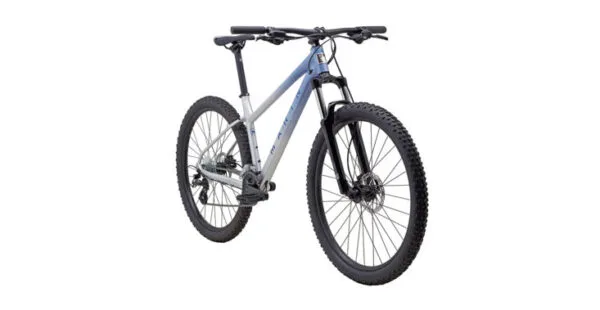

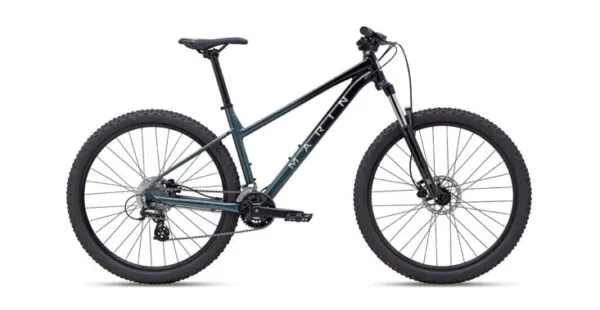

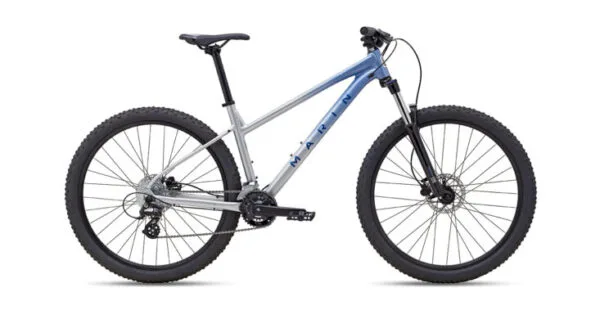

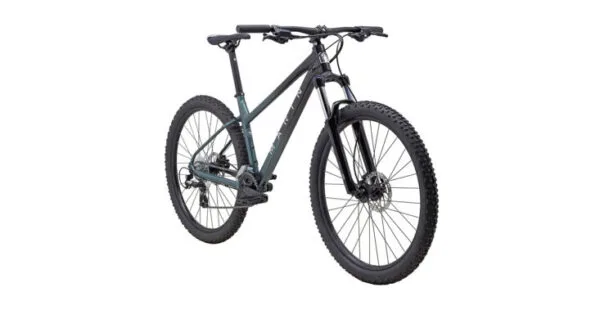

The Marin Wildcat Trail 3 is the top model in the Wildcat Trail range, designed for female riders who want to move beyond casual riding and explore more challenging singletrack trails, fire roads, and mountain bike terrain. Combining comfort, confidence, and trail-ready performance, the Wildcat Trail 3 delivers a capable platform without the complexity of a full-suspension mountain bike.
Built around a women’s-specific Series 2 6061 aluminium frame with low standover geometry, 27.5″ wheels, and internal cable routing, the Wildcat Trail 3 provides a balanced and responsive ride. The upgraded SR Suntour XCM HLO 120mm suspension fork, Shimano Altus drivetrain, hydraulic disc brakes, and women’s-specific components make this bike ready for longer rides and more demanding trails.
Key Upgrades Compared to Wildcat Trail 2
- Series 2 6061 aluminium frame with double-butted tubing and internal cable routing
- SR Suntour XCM HLO fork with 120mm travel and hydraulic lockout
Key Features
- Women’s-specific trail mountain bike
- Designed for singletrack, fire roads, and recreational trail riding
- Upgraded Series 2 6061 aluminium frame
- Low standover geometry for improved confidence and control
- 27.5″ wheels for agile and responsive handling
- SR Suntour XCM HLO suspension fork with 120mm travel
- Hydraulic lockout for efficient climbing and smoother surfaces
- Shimano Altus 8-speed drivetrain
- Hydraulic disc brakes with 160mm rotors
- 27.5×2.25″ MTB tyres for reliable grip
- Women’s-specific finishing kit
- Internal cable routing for a clean frame design
Specifications
Frame
| Component | Details |
|---|---|
| Frame Material | Series 2 6061 Aluminium |
| Frame Design | Women’s Specific Geometry |
| Wheel Size | 27.5″ |
| Standover | Low Standover Design |
| Bottom Bracket | 68mm BB Shell |
| Rear Dropouts | 135mm Forged Dropouts |
| Brake Mount | IS Chainstay Disc Mount |
| Cable Routing | Internal Housing Routing |
Suspension
Fork
| Specification | Details |
|---|---|
| Model | SR Suntour XCM HLO |
| Travel | 120mm |
| Adjustment | Hydraulic Lockout |
| Offset | 46mm |
Rear Shock
| Specification | Details |
|---|---|
| Rear Shock | Not Included |
Wheels & Tyres
Wheelset
| Specification | Details |
|---|---|
| Rims | Marin Aluminium Double Wall |
| Rim Width | 25mm Internal |
| Joint Type | Pinned Joint |
| Front Hub | Forged Alloy, Disc, 32H |
| Rear Hub | Forged Alloy, Disc, 32H |
| Spokes | Black Stainless Steel |
Tyres
- MTB 27.5×2.25″
Drivetrain
| Component | Details |
|---|---|
| Rear Derailleur | Shimano Altus 8-Speed |
| Front Derailleur | Altus Double |
| Shifter | Shimano Altus SL-M315 8-Speed |
| Crankset | Alloy Crank with Steel Chainrings |
| Chainring Size | 36/22T |
| Bottom Bracket | Sealed Cartridge Bearings, Square Taper |
| Chain | KMC Z8 |
| Cassette | SunRace 8-Speed |
| Cassette Range | 11-34T |
Brakes
Front Brake
- Clark’s Clout Hydraulic Disc Brake
- 160mm Rotor
Rear Brake
- Clark’s Clout Hydraulic Disc Brake
- 160mm Rotor
Brake Levers
- Clark’s Hydraulic Brake Levers
Cockpit
| Component | Details |
|---|---|
| Handlebar | Marin Riser Bar |
| Width | 740mm |
| Rise | 12mm |
| Stem | Marin Alloy |
| Clamp Diameter | 31.8mm |
| Stem Length | 45mm |
| Grips | Marin MTB Closed End |
| Headset | FSA No.10-P |
Seat Components
| Component | Details |
|---|---|
| Seatpost | Marin Alloy |
| Diameter | 30.9mm |
| Saddle | Marin MTB Women’s Specific |
| Pedals | Nylon Platform |
Geometry
| Size | S | M | L | XL |
|---|---|---|---|---|
| Stack | 594.7mm | 599.3mm | 604mm | 608.6mm |
| Reach | 420mm | 435mm | 445mm | 465mm |
| Head Tube Angle | 67.5° | 67.5° | 67.5° | 67.5° |
| Head Tube Length | 100mm | 105mm | 110mm | 115mm |
| Seat Tube Angle | 74.5° | 74.5° | 74.5° | 74.5° |
| Seat Tube Length | 330mm | 381mm | 431mm | 481mm |
| Effective Top Tube | 580mm | 596.3mm | 607.6mm | 628.8mm |
| Bottom Bracket Height | 307mm | 307mm | 307mm | 307mm |
| Bottom Bracket Drop | 48mm | 48mm | 48mm | 48mm |
| Chainstay Length | 425mm | 425mm | 425mm | 425mm |
| Wheelbase | 1109mm | 1125.9mm | 1137.8mm | 1160mm |
| Standover Height | 600.5mm | 621mm | 660mm | 706mm |
| Fork Offset | 44mm | 44mm | 44mm | 44mm |
| Seatpost Diameter | 30.9mm | 30.9mm | 30.9mm | 30.9mm |
| Handlebar Width | 740mm | 740mm | 740mm | 740mm |
| Stem Length | 45mm | 45mm | 45mm | 45mm |
| Crank Length | 170mm | 170mm | 175mm | 175mm |
All measurements are in millimeters.
Technology Highlights
Women’s Fit Geometry
The Wildcat Trail range features women’s-specific geometry designed to improve fit, comfort, and confidence. Components such as women’s-specific saddles, narrower handlebars, and adjustable brake reach help create a more natural riding position.
27.5″ Wheels
The 27.5″ wheel platform offers an excellent balance between stability, agility, and easy handling. This size is ideal for riders who want a responsive and confidence-inspiring trail bike.
Series 2 Aluminium Frame
The Wildcat Trail 3 features a Series 2 6061 aluminium frame with double-butted and hydroformed tubing. Internal cable routing, improved frame shaping, and modern construction provide increased durability and a cleaner appearance.
SR Suntour XCM HLO Suspension
The 120mm travel SR Suntour XCM HLO fork provides extra capability on rougher trails while the hydraulic lockout improves pedalling efficiency during climbs and smoother sections.
Sizing & Selection
Choosing the correct bike size helps maximize comfort, control, and confidence. The Wildcat Trail 3’s women’s-specific geometry is designed for riders who want a capable yet approachable mountain bike.
Use the geometry chart above to compare frame dimensions and select the best fit.
- Smaller size: More agile handling and easier manoeuvring
- Larger size: Increased stability and more room for taller riders
