Description

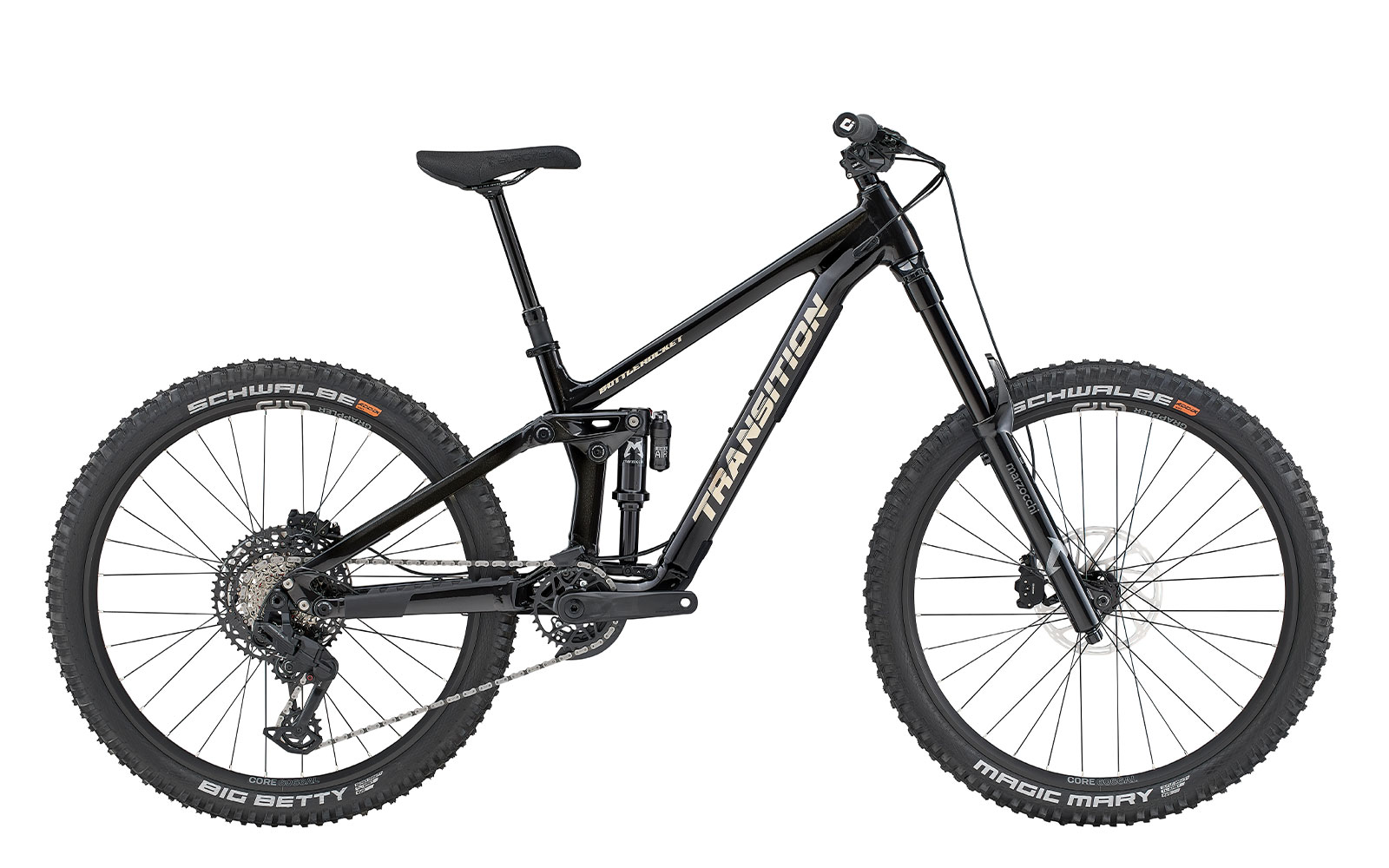

Transition Bottlerocket – Built for Freeride, Bike Parks, and Downhill
The Transition Bottlerocket is built for riders who want to push their limits, send bigger jumps, and take on the most demanding freeride terrain. Designed for bike park laps, downhill tracks, and creative riding, this aggressive alloy platform combines long-travel suspension with a durable construction built to handle repeated heavy impacts.
Available in both single-crown and dual-crown configurations, the Bottlerocket adapts to different riding styles. The single-crown build features 180 mm of front and rear travel, offering a playful and versatile setup for freeride lines, jumps, and technical trails. For riders looking for a more downhill-focused machine, the dual-crown build pairs a 200 mm fork with 203 mm of rear travel for increased capability on demanding tracks.
The frame features a robust forged rocker and chainstay yoke, designed to improve stiffness, minimize rear-end flex, and maintain smooth suspension movement. Additional bolt-on downtube protection helps guard against rock strikes and shuttle wear, while the gravity-cast bottom bracket area provides strength and precise alignment.
With adjustable geometry through the C.H.I.P.S. system, compatibility with a 29″ rear wheel, and two complete build options, the Bottlerocket provides the perfect foundation for riders who want a dedicated freeride machine without compromising on durability or performance.
Build Options
A versatile long-travel freeride setup designed for jumps, bike park sessions, and technical trails. The Marzocchi Bomber Z fork and Bomber Air rear shock deliver 180 mm of travel at both ends, while the dropper post and wide-range drivetrain make it easier to pedal between features.
Weight: 17.69 kg (Medium)
Built for demanding downhill tracks and repeated bike park laps, this setup combines a Marzocchi Bomber 58 fork with a 200 mm rear shock stroke configuration. The SRAM GX DH 7-speed drivetrain and straight seatpost keep the build focused on gravity riding.
Weight: 17.75 kg (Medium)
Complete Build Specifications
Single Crown Build
| Component | Details |
|---|---|
| Frame | Transition Bottlerocket Alloy, 180 mm rear travel |
| Wheel Size | 27.5″ |
| Fork | Marzocchi Bomber Z, 180 mm |
| Rear Shock | Marzocchi Bomber Air, 225 x 70 mm |
| Headset | FSA No.57E |
| Stem | Burgtec Enduro MK3, 35 mm |
| Handlebar | Burgtec Ride High Alloy |
| Grips | ODI Longneck V2.1 Lock-On |
| Saddle | Burgtec Cloud Boost |
| Seatpost | SDG Tellis Dropper Post |
| Brakes | SRAM Maven Base |
| Rotors | SRAM Centerline, 200 mm |
| Shifter | SRAM Eagle 70 MMX |
| Rear Derailleur | SRAM Eagle 70 |
| Cassette | SRAM XS-1270, 10-52T |
| Chain | SRAM Eagle 70 |
| Crankset | SRAM Eagle 70 DUB, 30T / 165 mm |
| Chainguide | e*thirteen Vario Chainguide – Enduro |
| Rims | e*thirteen Grappler Core |
| Spokes | Pillar Straight Gauge |
| Hubs | Novatec D951SB / D902SB |
| Front Tyre | Schwalbe Magic Mary Super Trail, Soft, 2.4″ |
| Rear Tyre | Schwalbe Magic Mary Super Trail, Soft, 2.4″ |
| Included | Tubeless valves and sealant |
| Weight | 17.69 kg (Medium) |
Dual Crown Build
| Component | Details |
|---|---|
| Frame | Transition Bottlerocket Alloy, 203 mm rear travel |
| Wheel Size | 27.5″ |
| Fork | Marzocchi Bomber 58, 203 mm |
| Rear Shock | Marzocchi Bomber Air, 225 x 75 mm |
| Headset | FSA No.57E |
| Stem | Race Face Chester 35 Direct Mount, 50 mm |
| Handlebar | Burgtec Ride High Alloy |
| Grips | ODI Longneck V2.1 Lock-On |
| Saddle | Burgtec Cloud Boost |
| Seatpost | Trans-X SP66 |
| Brakes | SRAM Maven Base |
| Rotors | SRAM Centerline, 203 mm front / 200 mm rear |
| Shifter | SRAM GX DH, 7-speed |
| Rear Derailleur | SRAM GX DH Medium Cage |
| Cassette | SRAM PG-720, 11-25T |
| Chain | SRAM PC-1130 |
| Crankset | SRAM Eagle 70 DUB, 34T / 165 mm |
| Chainguide | e*thirteen Vario Chainguide – Enduro |
| Rims | e*thirteen Grappler Core |
| Spokes | Pillar Straight Gauge |
| Hubs | Novatec D951SB / D902SB |
| Front Tyre | Maxxis Minion DHR II MaxxTerra DH Casing, 2.4″ |
| Rear Tyre | Maxxis Minion DHR II MaxxTerra DH Casing, 2.4″ |
| Included | Tubeless valves and sealant |
| Weight | 17.75 kg (Medium) |
Frame Specifications
| Component | Details |
|---|---|
| Frame Material | Alloy |
| Wheel Size | 27.5″ |
| Available Sizes | SM, MD, LG, XL |
| Fork Offset | 37-51 mm |
| Fork Axle-to-Crown | 577-589 mm, including headset |
| Headset | ZS44 top / ZS56 bottom |
| Bottom Bracket | 73 mm BSA threaded |
| ISCG Tabs | ISCG05 |
| Maximum Chainring | 38T |
| Chainline | 55 mm with chainguide / 52 mm without chainguide |
| Rear Brake Mount | Post Mount, 200 mm |
| Maximum Rotor Size | 223 mm |
| Derailleur Hanger | SRAM UDH |
| Rear Axle | Transition 148 mm UDH axle (TRB-HAX) |
| Seat Clamp | 37 mm |
| Seatpost Diameter | 31.6 mm |
| Seatpost Insertion Depth | SM: 210 mm / MD: 235 mm / LG: 270 mm / XL: 290 mm |
| Optional Dropouts | +5 mm and +10 mm dropouts and brake mounts, sold separately |
Geometry
The Bottlerocket features adjustable geometry with High and Low settings. The figures below are in millimetres unless otherwise indicated.
| Geometry | SM | MD | LG | XL |
|---|---|---|---|---|
| Reach – High / Low | 425 / 421 | 450 / 446 | 475 / 471 | 500 / 496 |
| Stack – High / Low | 607 / 610 | 616 / 619 | 625 / 628 | 625 / 628 |
| Effective Top Tube – High / Low | 538 / 533 | 573 / 568 | 606 / 601 | 638 / 633 |
| Seat Tube Length | 360 | 390 | 420 | 440 |
| Effective Seat Tube Angle – High / Low | 79.4° / 79.0° | 78.7° / 78.4° | 78.2° / 77.8° | 77.7° / 77.3° |
| Saddle Height Reference | 600 | 660 | 720 | 780 |
| Actual Seat Tube Angle – High / Low | 72.0° / 71.6° | 72.0° / 71.6° | 72.0° / 71.6° | 72.0° / 71.6° |
| Seat Tube Offset at BB | 78.2 | 78.2 | 78.2 | 78.2 |
| Head Tube Length | 100 | 110 | 120 | 120 |
| Head Tube Angle – High / Low | 64.0° / 63.6° | 64.0° / 63.6° | 64.0° / 63.6° | 64.0° / 63.6° |
| Chainstay Length | 435 | 435 | 435 | 435 |
| Wheelbase | 1191 | 1220 | 1249 | 1279 |
| Bottom Bracket Drop – High / Low | 15 / 20 | 15 / 20 | 15 / 20 | 15 / 20 |
| Estimated BB Height – High / Low | 340 / 335 | 340 / 335 | 340 / 335 | 340 / 335 |
Key Features
Durable aluminium frame designed for aggressive freeride and downhill riding
Two complete build options: single crown and dual crown
180 mm rear travel with a 70 mm shock stroke in the single-crown configuration
203 mm rear travel with a 75 mm shock stroke in the dual-crown configuration
Adjustable geometry through the C.H.I.P.S. system
Compatible with a 29″ rear wheel setup
Forged rocker and chainstay yoke for improved stiffness and durability
Bolt-on downtube protection against rock strikes and shuttle wear
Gravity-cast bottom bracket area for strength and precise alignment
ISCG05 chainguide compatibility
SRAM UDH derailleur hanger
BSA threaded bottom bracket for straightforward maintenance
Designed for bike parks, freeride lines, jumps, and demanding downhill tracks
