Description

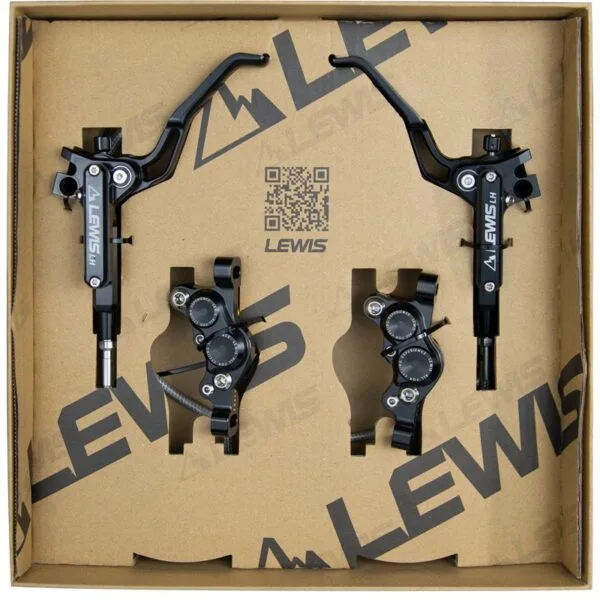

Lewis Enduro 4-Piston Hydraulic Disc Brake Set
The Lewis Enduro Brake Set is designed for riders who demand maximum stopping power, precise control, and consistent performance on the most aggressive trails. Developed for downhill, enduro, all-mountain, e-bike, and dirt bike applications, this 4-piston brake system delivers powerful yet predictable braking performance in any situation.
Featuring CNC-machined 7075 T6 aluminum components, stainless steel pistons, and advanced hydraulic technology, the Lewis brake system offers outstanding stiffness, modulation, and durability while keeping weight low. The result is a brake that provides confidence when attacking steep descents and technical terrain.
The patented 2-in-1 dual adjustment system allows riders to fine-tune both lever reach and bite point. Adjust reach without tools and customize the bite point using a 2mm Allen key, giving you complete control over your preferred braking feel.
The asymmetric 14mm + 17mm four-piston design improves pad pressure distribution, creates a smoother lever feel, and helps maintain even pad wear. Combined with the extended 1-finger lever blade and bearing pivots, the system provides excellent modulation and effortless braking control.
The upgraded hinged clamp design prevents handlebar damage, while the Easy Bleeding Technology makes maintenance quick and straightforward. Equipped with a premium Kevlar-reinforced K28 hose and mineral oil system, the Lewis Enduro brakes deliver a firm, responsive braking experience with excellent reliability.
Specifications
| Component | Details |
|---|---|
| Product Type | Hydraulic disc brake set |
| Included | Front + rear brake |
| Intended Use | Enduro, Downhill, All-Mountain, E-bike, Dirtbike |
| Brake Type | 4-piston hydraulic disc brake |
| Weight | 597g front + rear including hoses |
| Weight Without Hose | 380g |
Technology & Features
| Feature | Details |
|---|---|
| Lever Adjustment | Tool-free reach adjustment |
| Bite Point Adjustment | Adjustable with 2mm Allen key |
| Lever Pivot | Bearing pivots for improved modulation and feel |
| Lever Blade | Extended by 6mm for increased leverage |
| Caliper Technology | CNC-machined 7075 T6 aluminum |

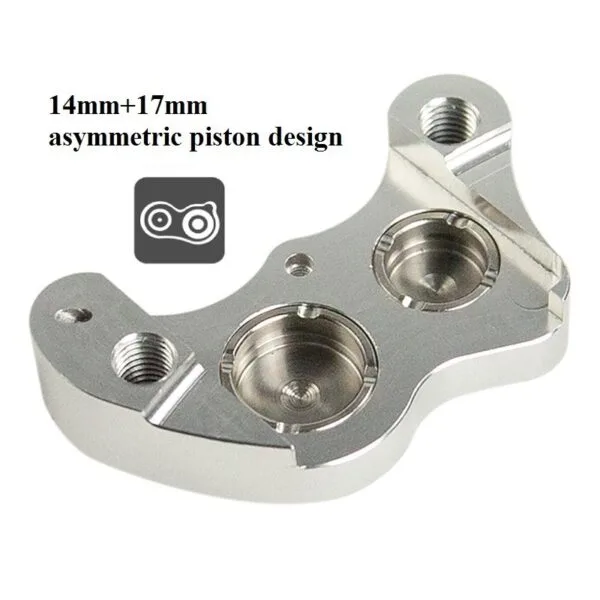

| Piston Design | 14mm + 17mm asymmetric stainless steel pistons |
| Brake Pads | Metallic pads |
| Hose Technology | Kevlar reinforced K28 braided hose |
| Bleeding System | Easy Bleeding Technology |
| Brake Fluid | Mineral oil |
Master Cylinder
| Component | Details |
|---|---|
| Type | Axial |
| Material | CNC 7075 T6 aluminum |
| Body Finish | Black, Silver, Black & Silver, Custom colors |
| Clamp Color | Black, Silver |
| Clamp Type | Hinged |
| Screws | Stainless steel |
| Reach Adjustment | Yes, tool-free |
| Bite Point Adjustment | Yes, 2mm Allen key |

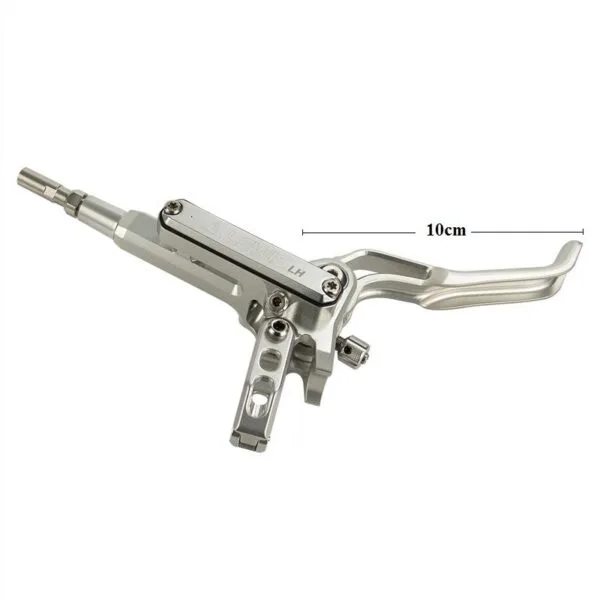

Lever Blade
| Component | Details |
|---|---|
| Material | CNC 7075 T6 aluminum |
| Colors | Black, Silver, Black & Silver, Custom colors |
| Lever Version | 1-finger lever blade |

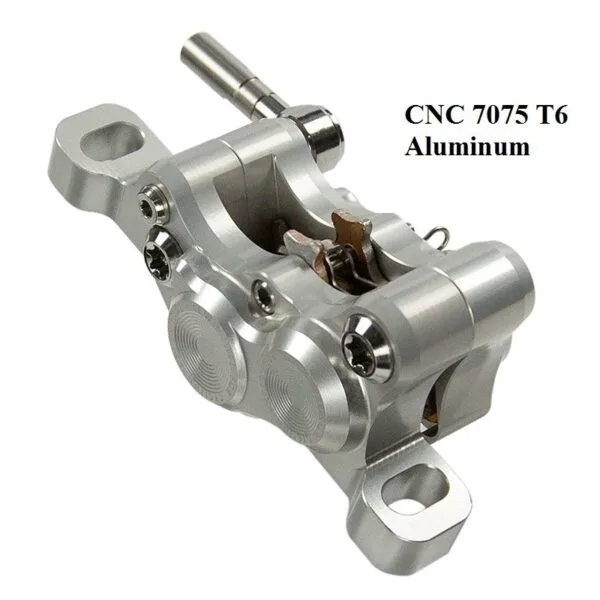

Caliper
| Component | Details |
|---|---|
| Material | CNC 7075 T6 aluminum |
| Colors | Black, Silver, Black & Silver, Custom colors |
| Mount Type | Post mount |
| Pistons | 2x 14mm + 2x 17mm stainless steel pistons |
| Screws | Stainless steel |
| Brake Pads | Metallic pads |

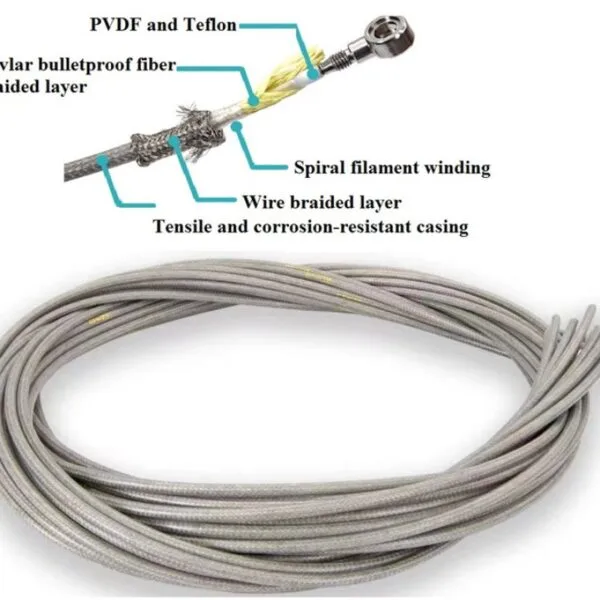

Hose
| Component | Details |
|---|---|
| Outer Diameter | 5mm |
| Inner Bore | 2.2mm |
| Front Hose Length | 90cm |
| Rear Hose Length | 160cm |
| Hose Length Adjustment | Can be shortened to fit different bikes |
| Hose Finish | Black |

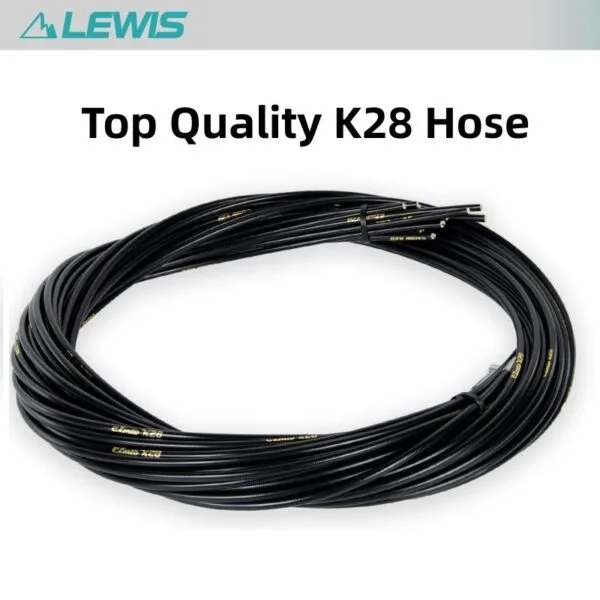

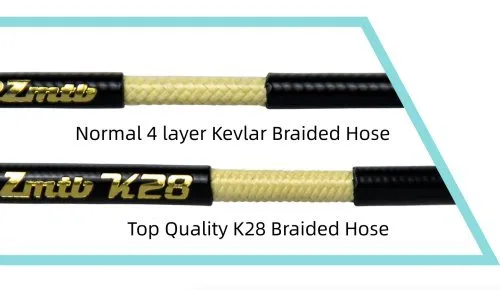

| Hose Type | Kevlar reinforced K28 braided hose |
Compatibility & Options
| Component | Details |
|---|---|
| Rotors | Not included (optional: 140mm, 160mm, 180mm, 203mm, 223mm) |
| Adapter | Not included |
| Recommended Bleed Kit | EZMTB 2022 standard |
Key Features
- Complete front and rear 4-piston hydraulic brake set
- Designed for downhill and enduro riding
- Powerful yet predictable braking performance
- CNC 7075 T6 aluminum construction
- Patented dual adjustment system for reach and bite point
- Tool-free lever reach adjustment
- Adjustable bite point for personalized braking feel
- Asymmetric 14mm + 17mm stainless steel piston design
- Metallic brake pads for maximum stopping power
- Lightweight design with excellent stiffness
- Hinged clamp system to protect handlebars
- Premium Kevlar K28 reinforced hose
- Easy bleeding system for simple maintenance
- Mineral oil hydraulic system
- Bearing-supported lever pivots for superior control
