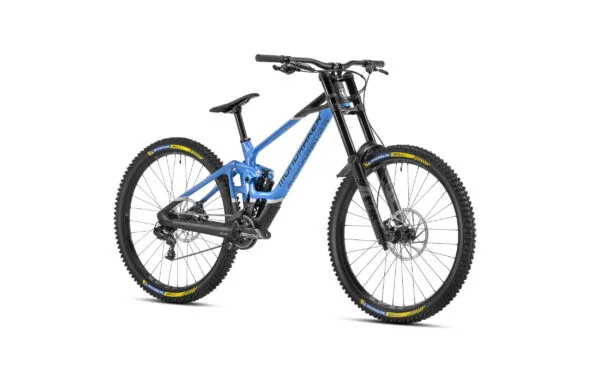

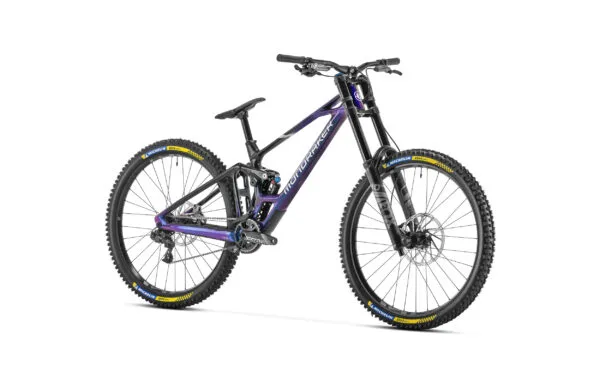

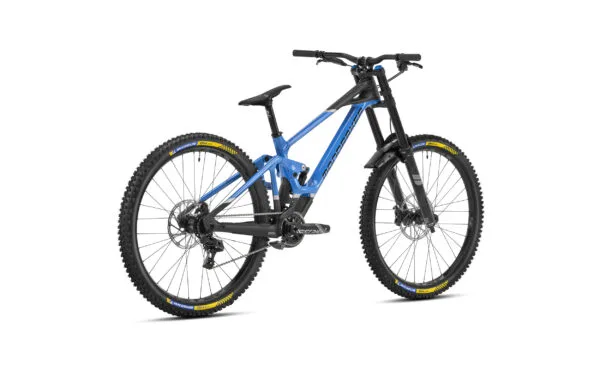

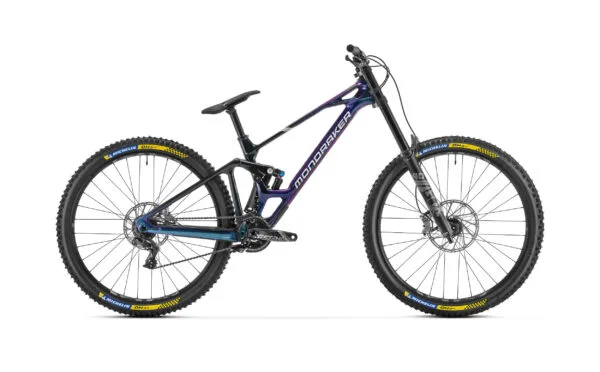

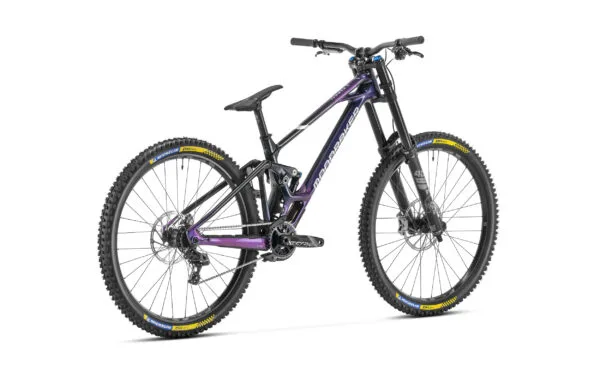

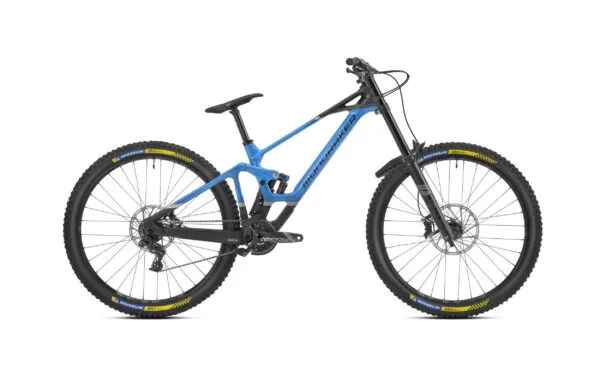

Mondraker SUMMUM CARBON R
€ 7.499,00
-Beschrijving-
The SUMMUM CARBON R inherits all of the features from the CARBON RR but with more affordable components. It shares the same frame as the CARBON RR, and also offers the MX option with a 29″ front wheel and a 27.5″ rear wheel. Light and effective, it’s a great bike for podium finishes in any DH race. In this case the geometry change kit is optional.
-specs-
Frame
Summum Carbon Stealth Air full Carbon, Zero Suspension System, 200mm travel, Forward Geometry, Carbon Monoblock upper link, SuperBoost 12x157mm rear axle, 83mm BSA bottom bracket, HHG internal cable routing, MAX. capacity dual row Enduro bearings, shock mudguard, ISCG 05, custom frame protectors. *Optional Geometry kit.
Sizes
S / M / L / XL 29″
Rear shock
Fox DHX2 Performance Elite, 225x70mm. Settings: low-speed compression, low-speed rebound, spring preload. Trunnion top mount, 30x8mm bottom bushings
Shock settings
ECC010 compression, ECR012 rebound. Spring rate: S size 400 lbs, M size 450 lbs, L size 500 lbs, XL size 500 lbs
Fork
Fox 40 29 Float FIT GRIP EVOL Performance, 203mm, air spring, 1-1/8” steerer tube, 20x110mm axle, offset 56mm. Settings: low-speed compression, low-speed rebound, air preload
Headset
Onoff Mercurium 1.5 ZS for 1-1/8” steerer tube, 41×30.15x7x45ºx45º ACB sealed bearings, geometry kit cups, external diameter 56mm
Stem
Onoff Krypton DH CNC Integrated FG, 25-30mm adjustable length, 31.8mm barbore, 6061 alloy, 2x6mm spacer
Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Desert, 1lock-on, 135mm
Seatpost
SDG Micro I-Beam SP-751 Alloy, diameter 31.6mm, length 300mm, micro-adjustment
Saddle
SDG I-Fly 2.0 I-Beam, high-density PU foam, Cordura sides
Front brake
Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 220mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Rear brake
Sram Code Bronze Stealth, oversized 4-piston caliper, Centerline 203mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake lever
Sram Code Bronze Stealth, SwingLink and lever pivot bushings, tool-free reach adjust
Rims
e*thirteen LG1 Plus DH, IW29 29″ Hookless, 6069 Welded Aluminum, 30mm internal width, tubeless ready, 32 spokes
Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Front hub
e*thirteen Boost 20x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear hub
e*thirteen Superboost 12x157mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, HG freehub
Front tire
Michelin DH34 29×2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Rear tire
Michelin DH34 29×2.4, tubeless ready, Magi-X DH compound, double-reinforced DH shield casing, wire bead
Crankset
Sram Truvativ Descendant DH, DUB axle, Direct mount chain ring, 165mm CL 56´5
Rings
34T, steel, X-SYNC
Bottom bracket
Sram DUB BSA, sealed bearings, 83mm
Chain
Sram PC1110 11s, Powerlock
Front derrailleur
E.13 Vario Compact Upper Slider ,Alloy backplate ,DMB (Direct mount Bashguard) Lower Slider 34-36t, ISCG 05 adjustable upper slider
Rear derrailleur
Sram GX DH, 7s, medium cage, X-actuation 1:1
Shift levers
Sram trigger GX DH 7s, X-actuation 1:1
Casette
Sram PG 720 11-25T, 7s
Derailleur hanger
Mondraker M075
Others
*Optional geometry kit: +-1º / +-2º headset cups
Weight
16,9 kg
-Features-
Zero Suspension System
ZERO is Mondraker’s proprietary most efficient, best performing and super capable suspension system. ZERO is individually designed, set up and optimised for the best pedalling efficiency and biggest hit capability on each Mondraker full suspension model across the range, from little Factor 24 or F-Play 24 models to Summum Alloy and Summum Carbon World Cup & World Championship winning downhill bikes.
ZERO is a virtual pivot suspension system with an exclusive dual link design. The most unique and exclusive feature of ZERO is that the shock floats between the two suspension links and is compressed from both ends. This makes the rear suspension extremely supple on small bumps and big hit capable, really the most acknowledgeable and astounding feature of every Mondraker full suspension bike.
ZERO superior technologies’ main advantages are Zero power loss -a completely stable ride when pedalling-, Zero pedal kickback-minimum chain growth throughout the suspension travel-, Zero brake jack –isolated braking and suspension forces- and what we call Zero bumps, its great ability to soak up any type of bump keeping the rear wheel efficiently planted on the ground.
Stealth Carbon
STEALTH CARBON is the most advanced carbon fibre development and optimisation technology in the Mondraker range. This constantly developing technology brings all the experience gained in making aluminium frames to top of the range carbon fibre to meet the same innovation, maximum quality, minimum weight and strength requirements. Carbon fibre layers’ placement is a crucial technique with specific positioning and direction of the different quality fibres for each bike type and model. The result is a frame with the best strength / structural rigidity / trail buzz absorption / lightness ratio, exceptional reliability and a very attractive and unique 100% Mondraker look.
-Geometry-
Frame size | S | M | L | XL | |
|---|---|---|---|---|---|
| A | Seattube length | 400 mm | 400 mm | 400 mm | 400 mm |
| B | Toptube length | 575 mm | 595 mm | 620 mm | 645 mm |
| C | Bottom bracket drop | -20 mm | -20 mm | -20 mm | -20 mm |
| D | Bottom bracket height | 350 mm | 350 mm | 350 mm | 350 mm |
| E | Chainstay length | 450/455/460 mm | 450/455/460 mm | 450/455/460 mm | 450/455/460 mm |
| F | Seat tube angle | 69° | 69º | 69° | 69° |
| G | Effective seattube angle | 77° | 77° | 77° | 77° |
| H | Headtube angle | 63º | 63,5º | 63,5º | 63,5º |
| I | Fork Offset | 56 mm | 56 mm | 56 mm | 56 mm |
| J | Wheelbase | 1260 mm | 1270 mm | 1295 mm | 1320 mm |
| K | Headtube length | 110 mm | 110 mm | 110 mm | 110 mm |
| L | Reach | 430 mm | 450 mm | 475 mm | 500 mm |
| M | Stack | 632 mm | 632 mm | 632 mm | 632 mm |
Mondraker SUMMUM CARBON R
€ 7.499,00
