-Beschrijving-

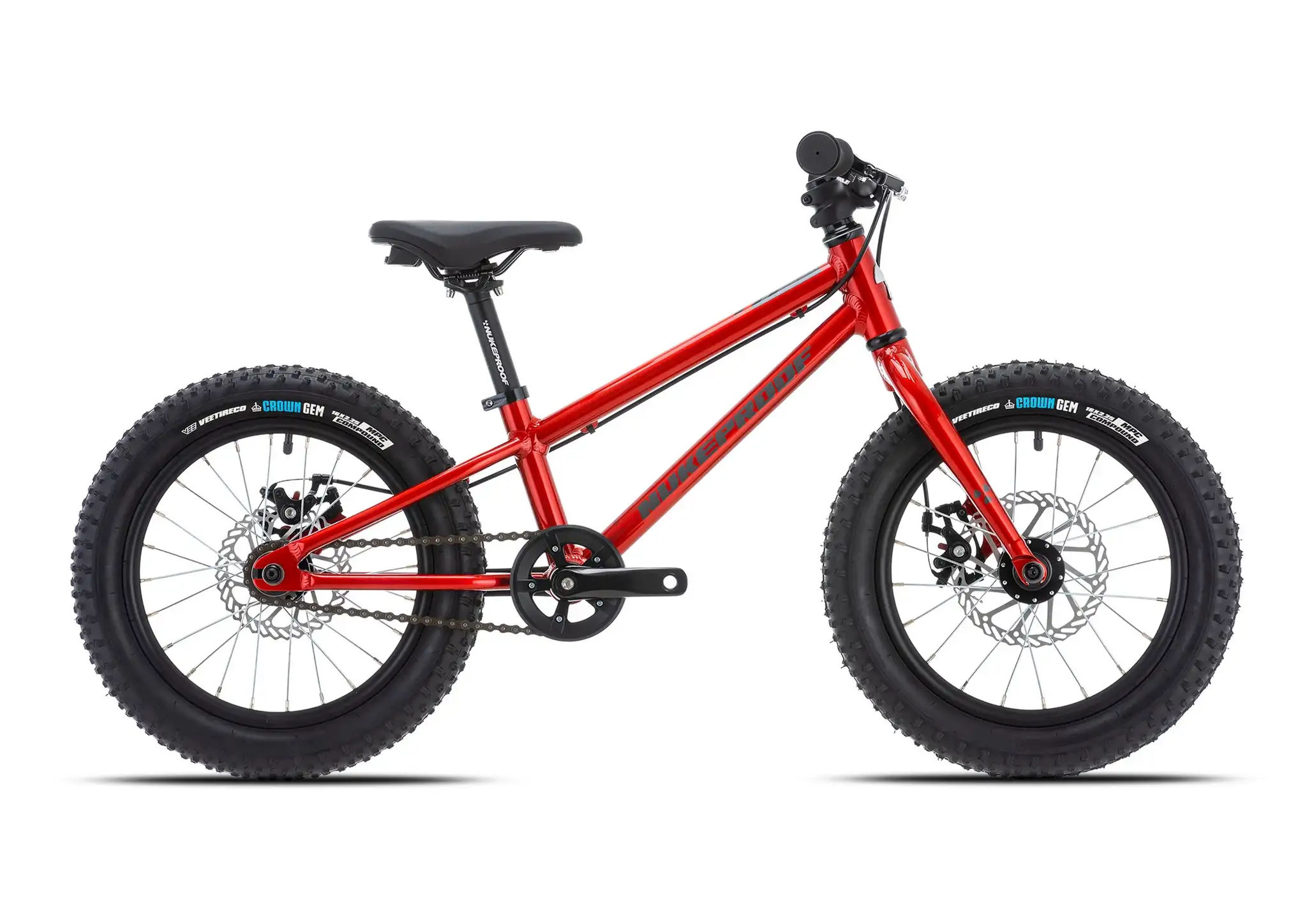

If you are just coming from a balance bike or have outgrown your 14”, the Cub Scout 16” is ready to take you on the next leg of the trail. Designed for future athletes aged 5yrs upwards (105-120cm), the 16” version of the Cub Scout takes its DNA from its legendary Scout brethren as a true mini mountain bike.
-Specs-
Frame
Cub-Scout 16″ 6061-T6 Custom-Butted Aluminium
Fork
Cub-Scout 16″ 6061-T6 Custom-Butted Aluminium, Straight Steerer
Wheelset
F: 100x10mm female axle hub on 16″ 20h rim R: 110x10mm female axle hub on 16″ 24h rim
Tyres
Vee Rubber – 16×2.25″ crown gem

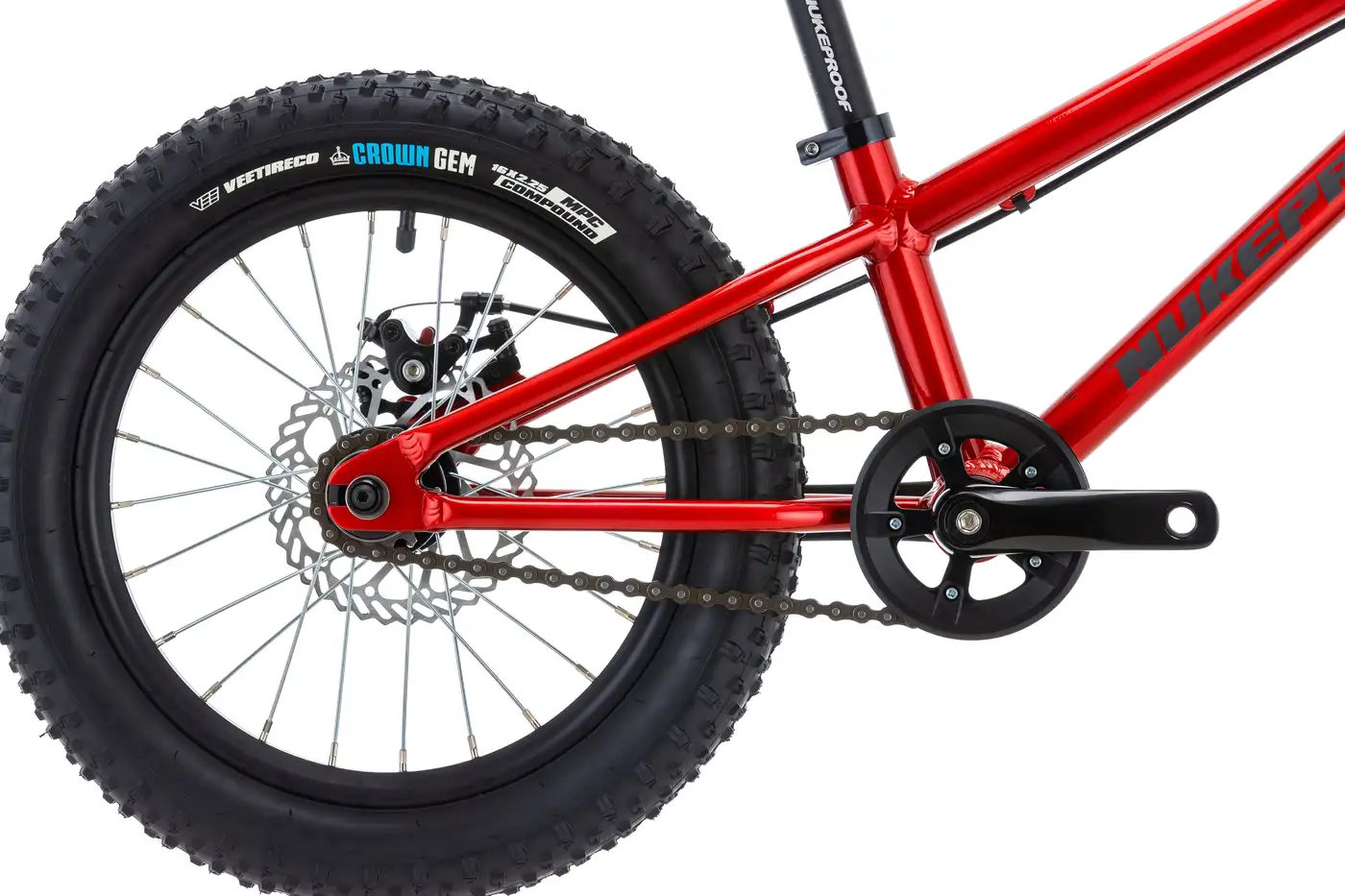

Chain
KMC Z1 Wide
Cassette
Single speed with 25x14t gearing
Front Brake
Tektro JL352-rs short reach lever on clarks mechanical caliper.

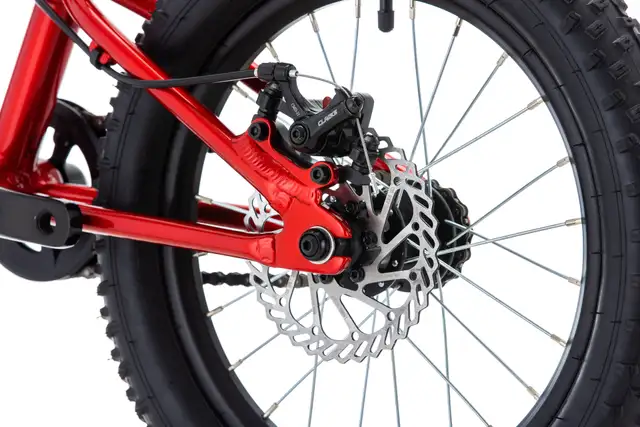

Rear Brake
Tektro JL352-rs short reach lever on clarks mechanical caliper.
Rotors
F: 160mm R: 140mm

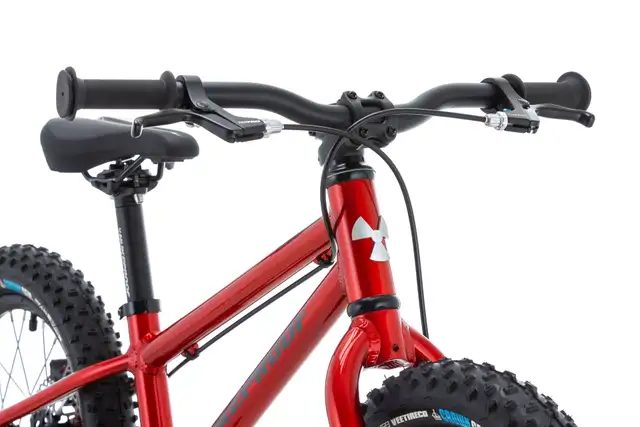

Handlebar
Nukeproof, 500mm wide, 25mm rise, 19mm dia grip area, 25.4mm clamp
Stem
40mm Nukeproof
Saddle
Nukeproof Kids Specific Saddle
Seatpost
Nukeproof 6061, 27.2x250mm, 0mm offset
Headset
VP Components Sealed Bearing, EX34-28.6/ EX34/30
Grips
19mm diameter closed end grips
Pedals
Wellgo LU-968 9/16″
Bike Weight
7.55kg (Inc Pedals)
-Geometry-
| A | Reach | 277.95 | |
| B | Stack | 341.08 | |
| C | Effective Top Tube Length | 385.4 | |
| D | Seattube Length | 200 | |
| E | Effective Seattube Angle | 72.5 | |
| F | Seattube Angle (Actual) | 72.5 | |
| I | Headtube Length | 100 | |
| J | Headtube Angle | 67.5 | |
| K | Chainstay Length | 297 | |
| L | Front Centre | 463.9 | |
| M | Wheelbase | 760.6 | |
| N | Bottom Bracket Drop | 10 | |
| O | Bottom Bracket Height | 199 | |
| P | Stand Over Height | 418.46 | |
| R | Trail | 37.9 | |
| S | Fork Offset | 45 | |
| T | Axle to Crown | 267 | |
| U | Maximum Seatpost Insert | 180 |
