-Beschrijving-

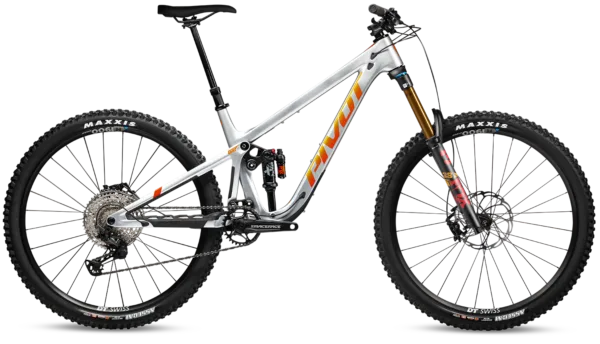

Modern geometry tailored for aggressive riding lets the Firebird rail at warp speed with battleship stability and laser precision. A relaxed head angle, long reach and generous wheelbase are the key ingredients of high-speed composure. Balance and responsiveness are brought into the mix via size specific chainstays and seat tube angles, ensuring that the Firebird remains nimble and responsive at all times, in all conditions. 165mm of ultra-capable dw-link suspension soaks up everything from jumbled moonscapes to massive G-outs and still snaps to attention and climbs with more authority than bikes offering inches less travel. Fast up, fast down. Fast.
-Specs-
| WHEEL SIZE | 29″ | |
| FRAME | Firebird | |
| WHEEL MATERIAL | Alloy | |
| REAR SHOCK | Fox Performance Float X | |
| FORK | Fox Factory 38 29″, 44mm offset, GRIP2 – 170mm | |
| HEADSET | Pivot Precision Sealed Cartridge | |
| REAR DER | Shimano XT M8100 SGS 12-Speed | |
| CASSETTE | Shimano Deore M6100 10-51t | |
| SHIFTER | Shimano SLX M7100 ISPEC EV 12-Speed | |
| BRAKES | Shimano SLX M7120 4-piston | |
| Race Face Ride 32t – 170mm(SM), 175mm(MD-XL) | ||
| HANDLEBAR | Phoenix Race Low Rise Aluminum – 800mm | |
| GRIPS | Phoenix Factory Lock-On | |
| STEM | Phoenix Team Enduro/Trail – 45mm | |
| SEATPOST | SDG Tellis 130-150mm (SM), E13 Vario 180-210mm (MD-XL) | |
| SADDLE | Phoenix WTB Volt Race (Medium Width) | |
| WHEELS | DT Swiss M1900 w/ DT Swiss 370 hub, 30mm – 29” 15×110 F/12×157 R | |
| TIRES | Maxxis Assegai 29″ x 2.5″ WT, TR, 3C, EXO+, MAXXTERRA Maxxis Assegai 29″ x 2.5″ WT, TR, 3C, EXO+, MAXXTERRA | |
| ROTOR | Galfer Rotor 203mm Galfer Rotor 203mm | |
| CHAIN | Shimano Deore CN-M6100 12 Speed |
-Details-
- Pivot’s full carbon frame feature size-specific ride tuning, leading edge carbon fiber materials and Pivot’s proprietary hollow core molding technology to ensure that every rider from 5’2” to 6’9” has a bike that feels perfect and performs at the optimum level for their size
- Long-and-low geometry for a confident, and size specific chainstay lengths refine the EWS Podium performance for different sized riders
- Phoenix DH-inspired longer dw-link® maximizes the Firebird’s rearward wheel-path for erasing square edge bumps and maximizing control
- 165mm of supple-yet-efficient dw-link™ suspension travel featuring a vertically mounted trunnion metric coil-over or air shocks combined with 170mm front travel for unrivaled suspension performance
- Equipped with 44mm offset 170mm-travel Fox Factory and Performance Series 38 forks
- Ultra-adjustable Fox Float X2, Float X, Live Valve, and DHX2 coil rear shock options
- Compatible with both 29” and 27.5” wheel sizes without compromise thanks to the adjustable geometry for 29” 27.5” or MX wheel setups
- Fits tires up to 29×2.6” or 27.5×2.8” wide
- 12 x 157mm Super Boost Plus rear spacing adds stiffness and control
- 31.6mm size seatpost match with the Firebird’s short seat tube with deep insertions for longer travel posts
- Featuring the easy to find UDH rear derailleur hanger for peace of mind when traveling the world
- 1.5” headtube provides increased front-end stiffness and tracking
- Hassle-free, full-length, internal cable routing
- All sizes fit a water bottle inside the front triangle
- Pivot Tool Dock system compatible with mounts under the top tube and integrated into the underside of the frame
- Custom tuned Fox Live Valve builds allow for layers of tuning to allow for a plusher than plush feel unmatched by any other suspension setup
- Adjustable geometry with a flip chip upper link mount
